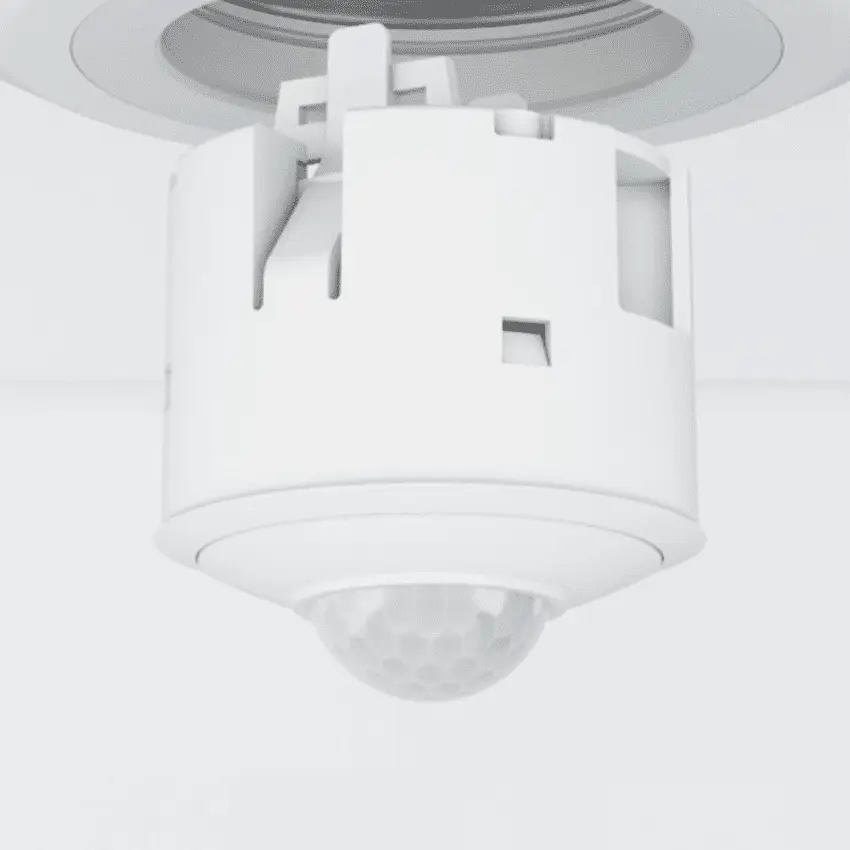

Lumi-PIR® replacement

PIR sensor replacement

£16.19

£13.49 ex VAT

Mains powered, IP54 rated and full fire rated motion sensors with integrated light. Replace to keep you home cost efficient and smart.

Energy and cost efficient lighting for your home.

Accredited and fully certified by third-party regulators.

Place where you need automation the most.

People also bought.

Sense when it’s time to replace your motion sensor.

Replace your automatic PIR sensor plugin to keep your lighting automated when the space is in use. Simply order a new replacement and click into the fixture and you can continue saving costs and the planet.

Spec.

Voltage

220-240V AC 50/60Hz

Ambient light

>3-2000 LUX adjustable

Detection distance

6m max.

Detection moving speed

0.6-1.5m/s

Installation height

2-4 metres

Working humidity

<93%RH

Working temperature

-20°c to +40°c

Power consumption

0.5W

Rated load

Max. 400W

Time delay

Min. 10sec, Max. 15min

Fire-rated

30/60/90 - Solid Joist 30 - Metal Webbed Joist & I-Joist

Product colour

White

Dimensions

Cut-out size

92mm

Diameter

110mm

Height

78mm

Depth

55mm

Important bits.

Here you can find all the information you need to achieve streamlined results.

Design files.

.RFA, .LDT, and .IES files to help streamline your design.

Datasheet.

Every product detail on one useful, downloadable datasheet.

Install sheet.

Download the installation sheet for all our technical know-how.

Test certification.

All our official certifications, ready for you to download.

Guarantee.

At Lumi-Plugin® we believe everybody deserves beauty and safety in their home.
We are proud of our almost non-existent failure rate which is why our PIR sensor comes with a 5-year guarantee.

FAQs.

  • What makes the Lumi-PIR® sensor different?

    It’s completely integrated within a Downlight, to reduce your ceiling clutter by combining features for multi-functional, useful ceilings.

  • How does the Lumi-PIR® sensor work?

    It provides automated lighting so when somebody walks into a room they switch the lights on or even an extractor fan on, and when they leave they automatically switch off, saving you energy, costs and impact on the environment.

  • If the Lumi-PIR® sensor fails or light fails do I have to replace the whole fixture?

    No. We’ve designed the product so you just replace the part you need. You can replace the PIR sensor by adding this product to your basket and the light source can be found here. However, our light has a 5 year use non-stop life cycle or 50,000 hours and the PIR has a 5-year guarantee so you don’t need to worry about this for a while.

  • Where could I have a PIR sensor in my home?

    Anywhere you wish. Bathrooms and hallways are popular areas to automatically light up. This is because they automatically turn off after a period of time if you forget to turn it off- saving you energy. However, why not fit throughout every room for fully automated living?

  • Does the Lumi-PIR® sensor only turn on the Downlight it is integrated within?

    Luckily for you, it comes without any pre-wiring. Meaning you can choose what you like to switch on at any one time, including the light it sits within.
